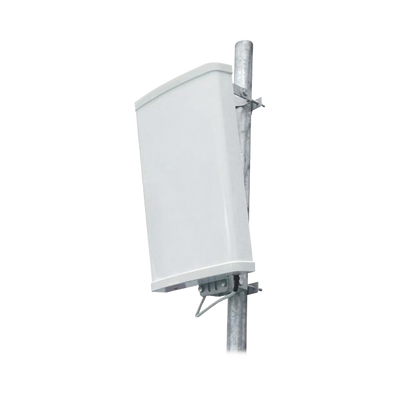

Antena Direccional Cell-Max Para Exterior 698-960 MHz y 1710-2700 MHz

Antena Direccional Cell-Max Para Exterior 698-960 MHz y 1710-2700 MHz

(0 review)
CMAX-EXT-CPUSEI53
  • Brand
Add to cart Buy now
Add to wishlist
Price
$ 22,003.83 $ 22,003.83 VAT Included
$ 18,968.82 VAT Included

Frequency Band, MHz
  • 698–800
  • 800–960
  • 1710–2200
  • 2200–2700
Gain, dBi
  • 10.0
  • 11.0
  • 11.0
  • 11.0
Beamwidth, Horizontal, degrees
  • 68
  • 60
  • 60
  • 52
Beamwidth, Vertical, degrees
  • 30.0
  • 28.0
  • 30.0
  • 30.0
Front-to-Back Ratio at 180°, dB
  • 18
  • 18
  • 20
  • 20
VSWR | Return Loss, dB
  • 1.8 | 10.9
  • 1.8 | 10.9
  • 1.8 | 10.9
  • 1.8 | 10.9
PIM, 3rd Order, 2 x 20 W, dBc
  • -153
  • -153
  • -153
  • -153
Input Power per Port, maximum, watts
  • 100
  • 100
  • 100
  • 100
Polarization
  • Vertical
  • Vertical
  • Vertical
  • Vertical
Impedance
  • 50 ohm
  • 50 ohm
  • 50 ohm
  • 50 ohm
Recursos adicionales
    Recursos adicionales

      Specifications

      Brand ANDREW
