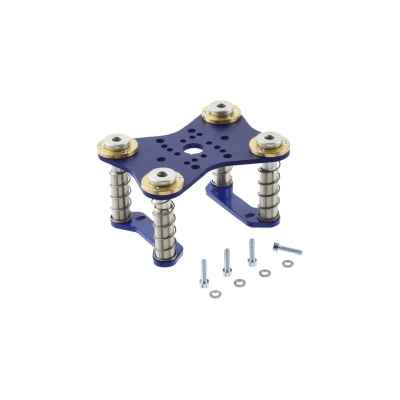

![[10.01.54.00105]](/web/image/product.product/23403/image_1024/%5B10.01.54.00105%5D%20?unique=fca433f)
Datos de diseño
| Atributo | Valor |
|---|---|
| L | 175 mm |
| B | 134 mm |
| H | 90.5 mm |
| PSSG | |
| Y1 | 91 mm |
| X1 | 132 mm |
| d1 | 6.6 mm |
| d2 | 6.6 mm |
| d3 | 6.6 mm |
| d4 | 9 mm |
| D mk1 | 40 mm |
| D mk2 | 50 mm |
| D mk3 | 63 mm |
| D mk4 | 80 mm |
| H1 | 102.4 mm |
| G1 | M6-MA |
| s | 6 mm |
| Z (Recorrido) | 18.5 mm |
Recursos adicionales
Recursos adicionales
Especificaciones
| Marca | SCHMALZ |
