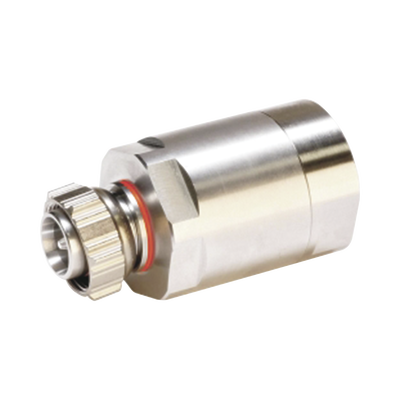

Conector 4.3-10 Macho Para Cable de 7/8 AVA5-50 y AVA5-50FX

Conector 4.3-10 Macho Para Cable de 7/8 AVA5-50 y AVA5-50FX

A5HM-D

Añadir al carrito Comprar ahora

Añadir a lista de deseos

Price

$ 937.21 IVA incluido

$ 807.94 IVA incluido

General Specifications

Interface: 4.3-10 Male
Body Style: Straight
Mounting Angle: Straight
Ordering Note: CommScope® standard product (Global)

Electrical Specifications

Connector Impedance: 50 ohm
Operating Frequency Band: 0 – 5000 MHz
Cable Impedance: 50 ohm
3rd Order IMD Dynamic Test Method: Two +43 dBm carriers
3rd Order IMD, typical: -166 dBc @ 1800 MHz
3rd Order IMD Test Method: Two +43 dBm carriers
RF Operating Voltage, maximum (vrms): 1415.00 V
dc Test Voltage: 4000 V
Outer Contact Resistance, maximum: 1.50 mOhm
Inner Contact Resistance, maximum: 0.40 mOhm
Insulation Resistance, minimum: 5000 MOhm
Average Power: 3.0 kW @ 900 MHz
Peak Power, maximum: 40.00 kW
Insertion Loss, typical: 0.05 dB
Shielding Effectiveness: -130 dB

Recursos adicionales

Recursos adicionales

Especificaciones

Marca

ANDREW / COMMSCOPE
