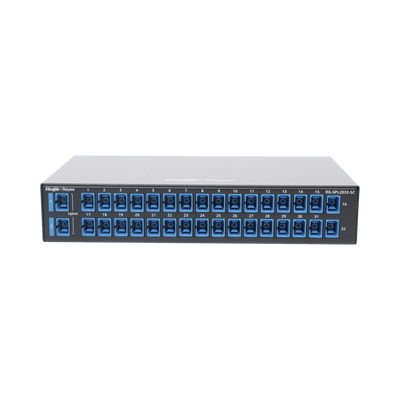

e-Lighten Splitter Pasivo 2/32, Puertos PON SC/UPC, Frecuencias soportadas de 1260nm a 1650nm con hasta 500 mW de Potencia de Entrada
RG-SPL2032-SC
-
Marca
Key Specification
General Specifications
- Model: RG-SPL2032-SC
- Weight: 0.98kg (2.16 lbs.)
- Operating Temperature: –40°C to +85°C (–40°F to +185°F)
- Warranty: 3 years
Technical Specifications
- Operating Wavelength: 1260 nm to 1650nm
- Dimensions (W x D x H): 220 mm x 130 mm x 42 mm (8.66 in. x 5.12 in. x 1.65 in.)
- Maximum Input Power: 500 mW
Performance Specifications
- Temperature-Dependent Loss: ≤ 0.3 dB
- Wavelength-Dependent Loss: 0.4 (1310 + 40), 0.4 (1550 + 40)
- Insertion Loss: ≤ 17.7 dB
- Port Insertion Loss Uniformity: ≤ 1.5 dB
- Return Loss: ≥ 50 dB
- Polarization-Dependent Loss: ≤ 0.3 dB
Recursos adicionales
- Guía de Instalación
Recursos adicionales
Especificaciones
| Marca | RUIJIE |
